100pcs Solder Seal Wire Connectors & 328pcs Heat Shrink Tubing, Waterproof Insulated Electrical Butt Terminals Wire…
Amazon.com Price: $20.99 (as of 10/04/2023 08:25 PST- Details)

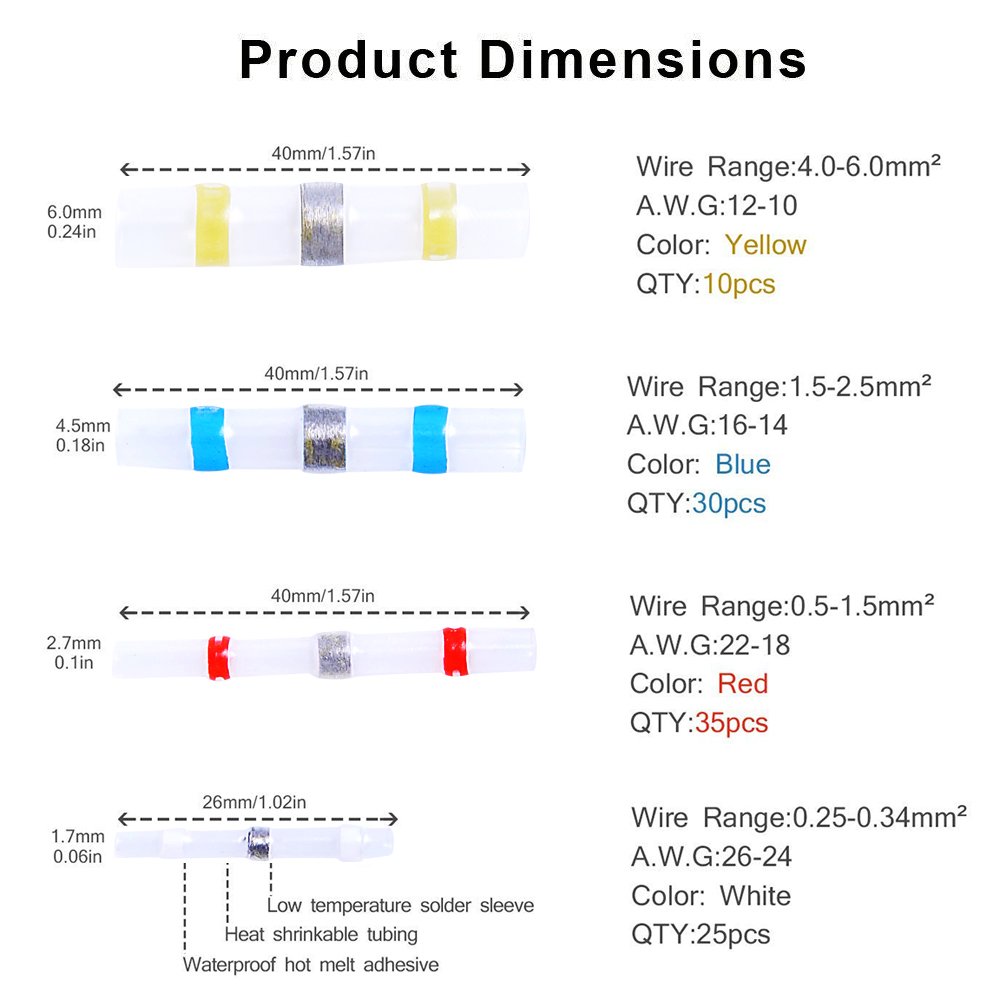

♥Heat Shrink Solder Connectors♥: 4 Sizes of Wire Butt Terminals designed for wire splice connection, provides excellent waterproof sealing and protection from mechanical damage combined with Anti-Corrosion effect!
♥Easy Operation♥: Strip the outer surface of the wire about 0.75 cm, insert the wires to the heat shrink tube, heat the shrink tube and continuously rotate the wire when applying heat. Color-coded tubing makes it easy to identify the right size of the connector for every application.
♥Insulation and Waterproof♥: Polyolefin tubing in outside and hot melt rings in inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion.
Description

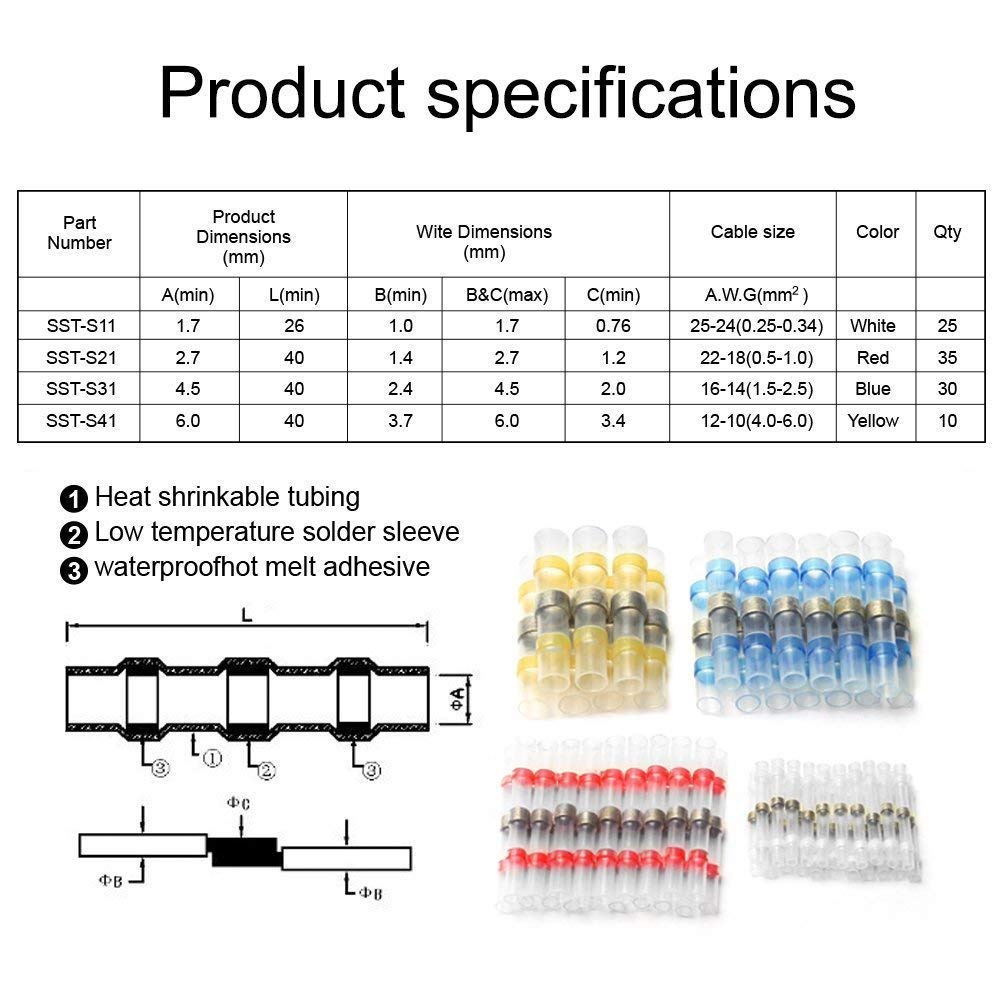

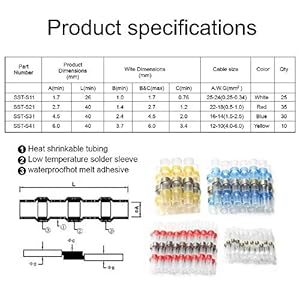

SOLDER & SEAL HEAT SHRINK CONNECTOR SPECIFICATIONS:
Shrinkage ratio 2:1

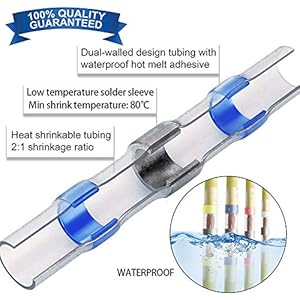

Dual-walled design tubing: Polyolefin tubing on the outside and hot melt adhesive inside
Minimum temperature for solder to melt: 138°C
Minimum shrink temperature: 80°C
Operating temperature :-55℃ – 125℃
Shrink temperature : ＞160℃
Dielectric strength :1kv
Protection class :IP 67
Color coded connector tubing
No wire damage due to lower shrink temperature

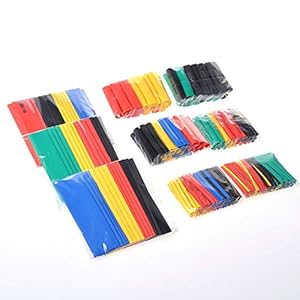

Heat shrink tubing SPECIFICATIONS:
328pcs 2:1 Heat Shrink Tubes Polyolefin Shrinking Assorted Wrap Wire Cable Insulated Sleeving Tubing Set
Color: Black,Red,Yellow,Blue,Green
Minimum Shrinkage Temp: +70°C
Operating Temperature: -55°C to +125°C
Full Shrinkage Temp: +110°C Maximum
Tensile Strength: 10.4 Mpa
Dielectric Strength:15 kV/mm
Flammability: Flame Retardant
120pcs x φ1.0 x 40mm
60pcs x φ2.0 x 40mm
32pcs x φ3.0 x 40mm
32pcs x φ4.0 x 40mm
32pcs x φ6.0 x 40mm
20pcs x φ8.0 x 80mm
16pcs x φ10.0 x 80mm
16pcs x φ14.0 x 80mm

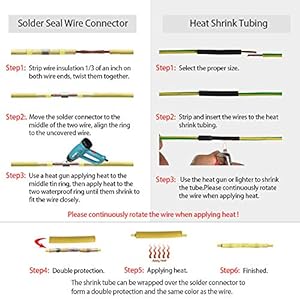

Usage:
1. Choosing the proper size first.
2. stripping and insert the wires to the heat shrink tubing.
3. Using the heat gun or lighter to shrink the tube.
Apply heat evenly to the connector from the 2 ends first until tubing shrinks and the adhesive flows, then continuously apply heat evenly until solder sleeve melt and seal.
Note:
Keep about 1/2 inch distance when using the lighter to shrink the tube, or it may leave a black mark on the tube.
Don’t touch the tube until it is cool completely

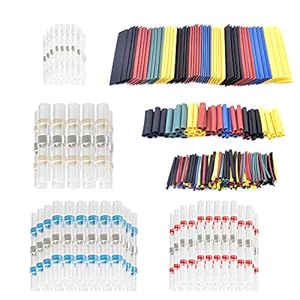

Package Includes:

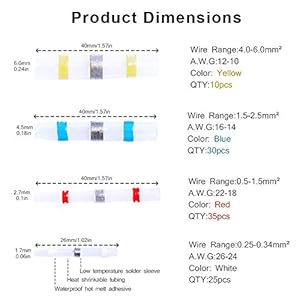

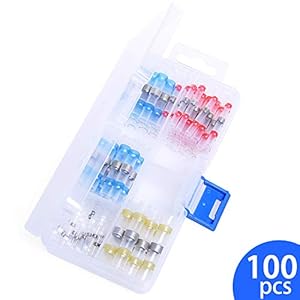

1x 100PCS (4 sizes) Solder Seal Wire Connector
1x 328PCS(8 Sizes) 2:1 Heat Shrink Tubing
♥Heat Shrink Solder Connectors♥: 4 Sizes of Wire Butt Terminals designed for wire splice connection, provides excellent waterproof sealing and protection from mechanical damage combined with Anti-Corrosion effect!
♥Easy Operation♥: Strip the outer surface of the wire about 0.75 cm, insert the wires to the heat shrink tube, heat the shrink tube and continuously rotate the wire when applying heat. Color-coded tubing makes it easy to identify the right size of the connector for every application.
♥Insulation and Waterproof♥: Polyolefin tubing in outside and hot melt rings in inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion.

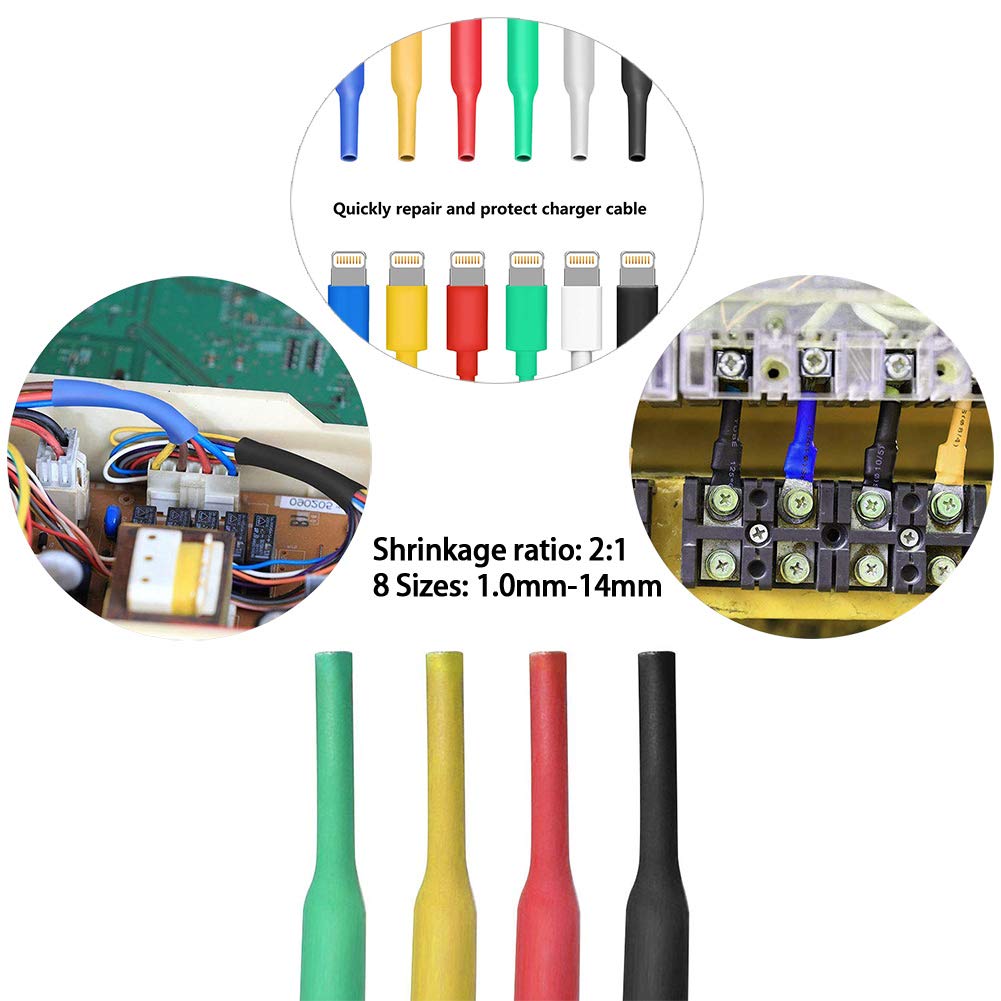

♥Application Areas♥: Neat and reliable wire connection anywhere you need just in seconds, in your car, marine, at home, fixing a wire in your computer or somewhere else!
♥Affordable Combination Set♥: 1 x 100PCS Heat Shrink Butt Connectors with case + 1 x 328PCS Heat Shrink Tub Kit – contains 8 sizes, 5 colors, internal diameter(1mm, 2mm, 3mm, 4mm, 6mm, 8mm, 10mm, 14mm).
Additional information
| Brand | |
|---|---|
| EAN | |
| EANList | |
| Label | |
| Manufacturer | |
| MPN | |
| PackageDimensions | 220, hundredths-inches, 811, hundredths-inches, 36, Hundredths Pounds, 610, hundredths-inches |
| PartNumber | |
| ProductGroup | |
| ProductTypeName | |
| Publisher | |
| Size | |
| Studio | |
| UPC | |
| UPCList |
