Description

Technical Details
Frequency Range: 1575±5MHz
Voltage: 3~5V
Amplifier Gain.: 26dB>
Antenna Gain.: 3.5dBic
LNA Gain: 28 dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature(Deg.C): -45~+85
Storage Temperature(Deg.C): -50~+90
Humidity: 100%
Weatherproof: Yes
Length: 8 m (26 feet)
Weight (without cable): 200g (7.5oz)
Color: White

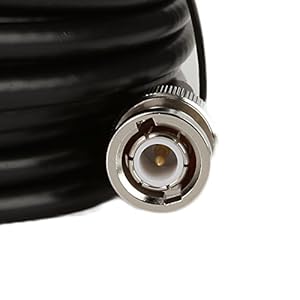

Connector type: BNC connector

Compatible Garmin Models
GPSMAP178, 178C (010-00363-00)
GPSMAP178C Sounder (010-00340-00)
GPSMAP180 (010-00149-00)
GPSMAP182 (010-00238-00)
GPSMAP182C (010-00259-00)
GPSMAP185 Sounder (010-00150-00)
GPSMAP188 (010-00239-00)
GPSMAP188C (010-00260-00)
GPSMAP192C (010-00431-00)
GPSMAP196 (010-00301-00)
GPSMAP198C Sounder (010-00432-00)
GPSMAP200 (010-00049-00)
GPSMAP205 (010-00069-01)
GPSMAP210 (010-00069-00)
GPSMAP215 (10-00069-20)
GPSMAP220 (010-00070-00)
GPSMAP225 (010-00070-20)
GPSMAP230 (010-00118-00)
GPSMAP232 (010-00118-00)
GPSMAP235 Sounder (010-00119-00)
GPSMAP238 Sounder (010-00250-10)
GPSMAP278 (010-00569-00)
GPSMAP292 (010-00506-01)
GPSMAP295 (010-00200-00)
GPSMAP296 (010-00356-00)
GPSMAP298C Sounder (010-00507-00)
GPSMAP376C (010-00438-00)
GPSMAP378 (010-00542-00)
GPSMAP396 (010-00425-00)
GPSMAP420/420s
GPSMAP421/421s
GPSMAP430/430s
GPSMAP431/431s
GPSMAP440/440s
GPSMAP441/441s
GPSMAP478 (010-00543-00)
GPSMAP492 (010-00503-00)
GPSMAP495
GPSMAP496 (010-00578-00)
GPSMAP498C Sounder (010-00504-00)

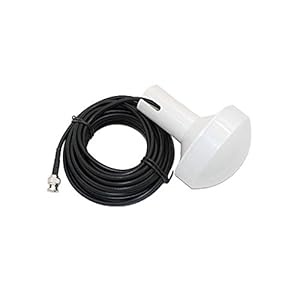

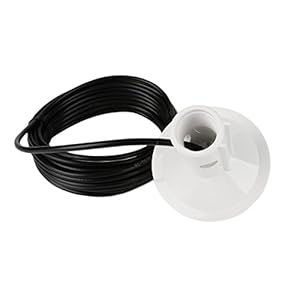

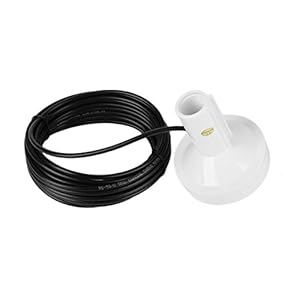

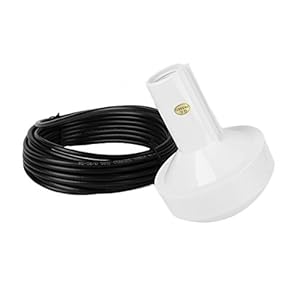

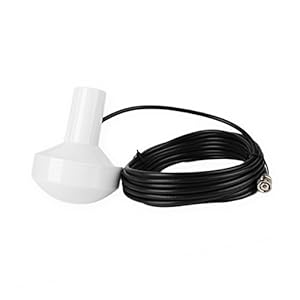

External Marine GPS Antenna for Garmin Boat Ship GPS GPSMAP
BNC connector, 26 Feet (8 Meters) Long Cable, Frequency Range: 1575±5MHz
GPSMAP178, 178C (010-00363-00), GPSMAP178C Sounder (010-00340-00), GPSMAP180 (010-00149-00), GPSMAP182 (010-00238-00), GPSMAP182C (010-00259-00), GPSMAP185 Sounder (010-00150-00), GPSMAP188 (010-00239-00), GPSMAP188C (010-00260-00), GPSMAP192C (010-00431-00), GPSMAP196 (010-00301-00), GPSMAP198C Sounder (010-00432-00)
GPSMAP200 (010-00049-00), GPSMAP205 (010-00069-01), GPSMAP210 (010-00069-00), GPSMAP215 (10-00069-20), GPSMAP220 (010-00070-00), GPSMAP225 (010-00070-20), GPSMAP230 (010-00118-00), GPSMAP232 (010-00118-00), GPSMAP235 Sounder (010-00119-00), GPSMAP238 Sounder (010-00250-10), GPSMAP278 (010-00569-00), GPSMAP292 (010-00506-01), GPSMAP295 (010-00200-00), GPSMAP296 (010-00356-00), GPSMAP298C Sounder (010-00507-00)
GPSMAP376C (010-00438-00), GPSMAP378 (010-00542-00), GPSMAP396 (010-00425-00), GPSMAP420/420s, GPSMAP421/421s, GPSMAP430/430s, GPSMAP431/431s, GPSMAP440/440s, GPSMAP441/441s, GPSMAP478 (010-00543-00), GPSMAP492 (010-00503-00), GPSMAP495, GPSMAP496 (010-00578-00), GPSMAP498C Sounder (010-00504-00)
