Description

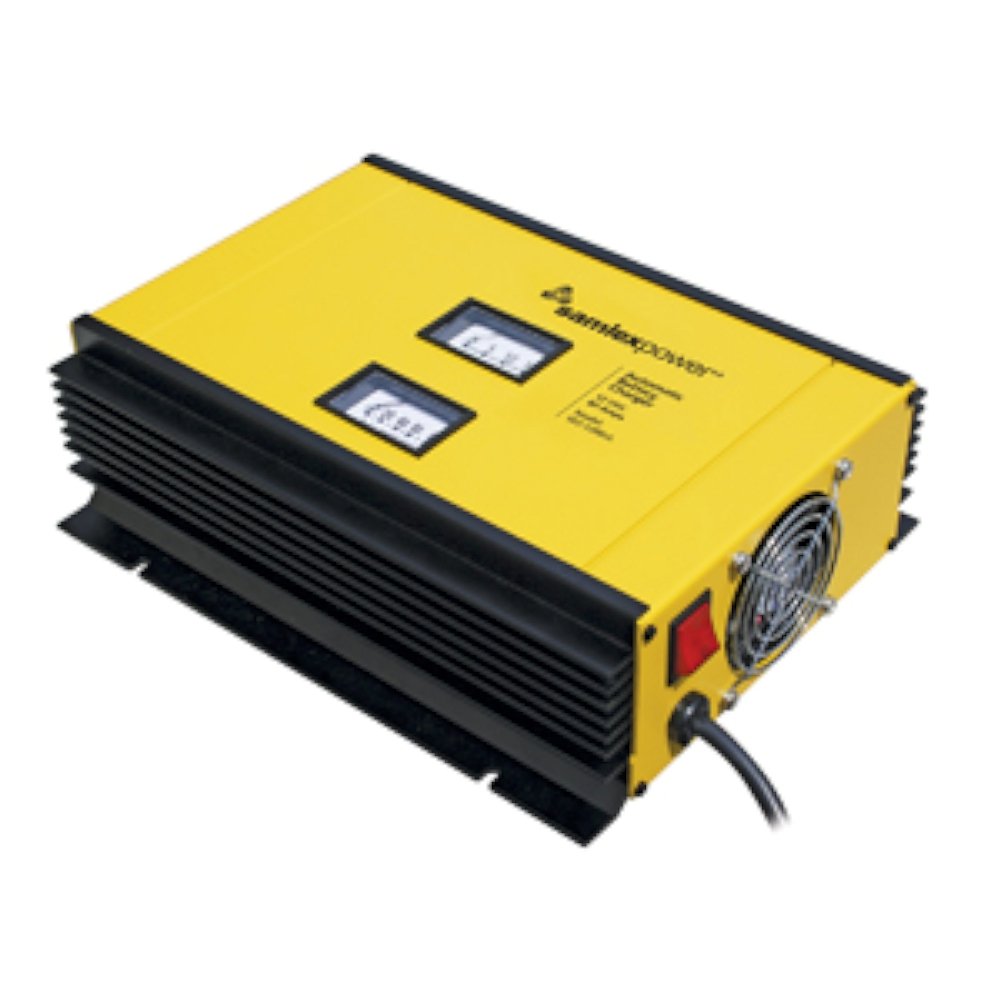

Samlex SEC-1280UL Automatic 12V Switch Mode Battery Charger; Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell; User Configurable AC Input voltage 120 or 230 VAC, 50/60 Hz

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries (Flooded/Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 2 separate battery banks.

Key Features

• Switch mode technology for high efficiency, lightweight and quiet operation
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Selectable (by DIP Switch) Selectable for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
• Ammeter & LED power status indicator
• Protections: Short circuit, overload, reverse battery polarity
• Fan cooled based on output current
• Safety certified and listed to UL Standard UL-1564
• EMI Compliant to FCC Part 15(B), Class B

Specifications

• Nominal Input Voltage (pre-set): 120 VAC, 60 Hz
• Internal Jumper Change: 230 VAC, 50 Hz
• Input Current: 15.9A / 8.6A
• Output Voltage, Boost: 14V / 14.4V ± 0.05V
• Output Voltage, Float: 13.5 V ± 0.05V
• Output Amps: 80A
• Operating Temperature Range: 0 – 40°C/32°F – 104°F
• Dimensions (LxWxH): 15″ x 9.61″ x 3.82″
• Weight: 9 lbs

Switch mode technology for high efficiency, lightweight and quiet operation
Can charge 2 banks of batteries simultaneously, no isolator necessary
Can be used as a power supply or DC UPS when used in conjunction with a battery
User Selectable (by DIP Switch) Selectable for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
Protections: Short circuit, overload, reverse battery polarity
