12vtechnology Waterproof Two 2 Pin Wire Polarized Solar Panel Mount Connector Plug Socket Marine 12 Volt #Cn1

12vtechnology Waterproof Two 2 Pin Wire Polarized Solar Panel Mount Connector Plug Socket Marine 12 Volt #Cn1

Amazon.com Price: $20.90 (as of 10/04/2023 08:25 PST- Details)

Save 10% with this coupon.
Your coupon will be applied at amazon checkout. Details

Waterproof submersible connection.
Rated for 15 amps at 12 volts.
Mounts in a panel or dashboard of any thickness.

Usually ships in 1-2 business days

Categories: ,

Description

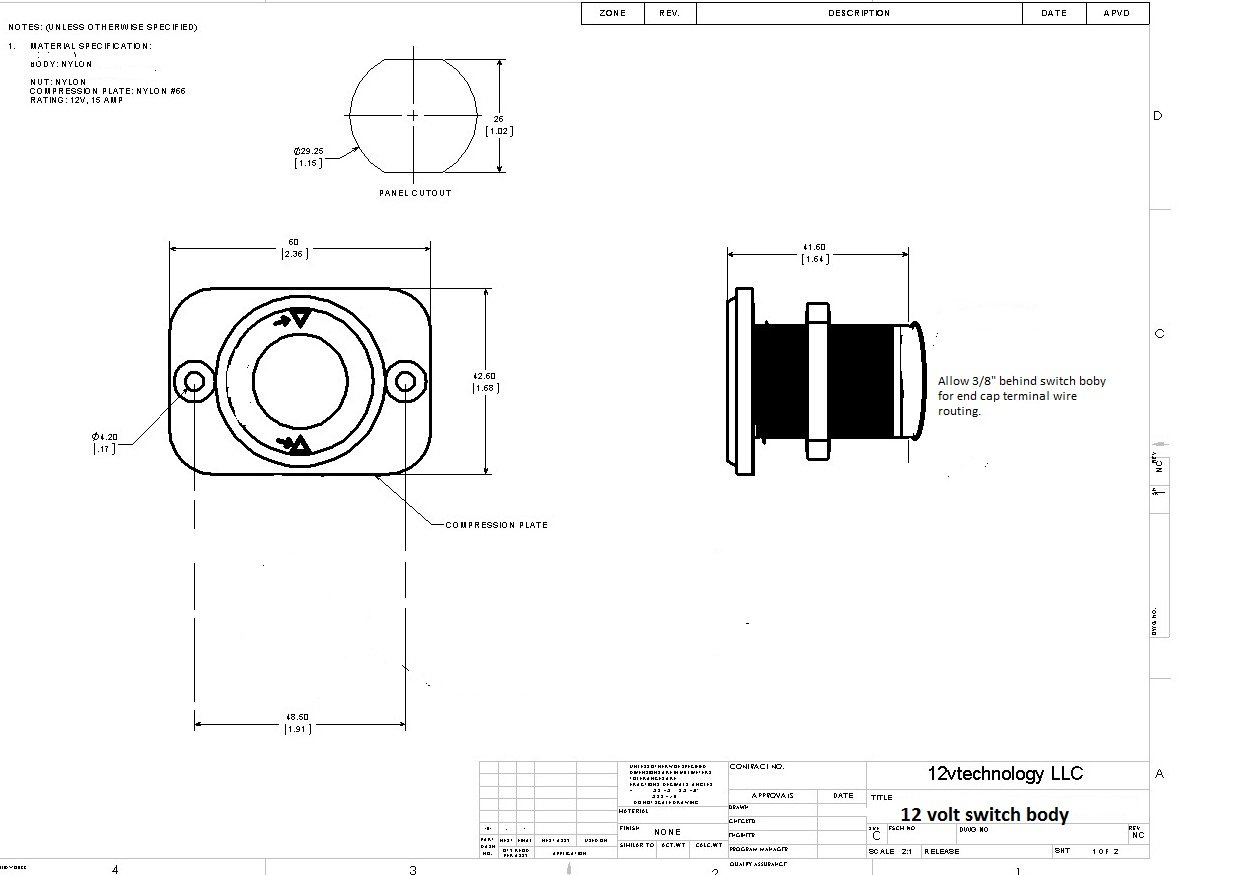

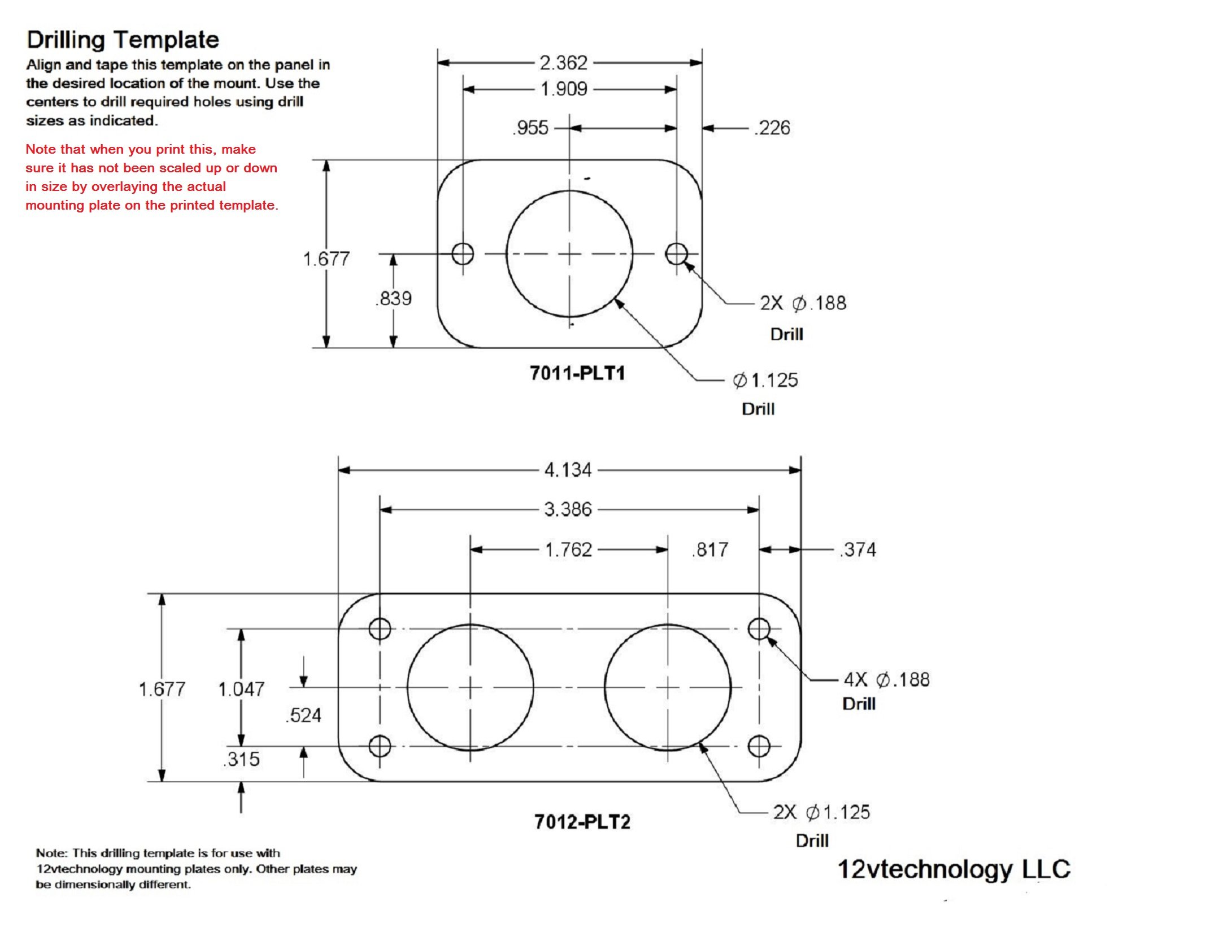

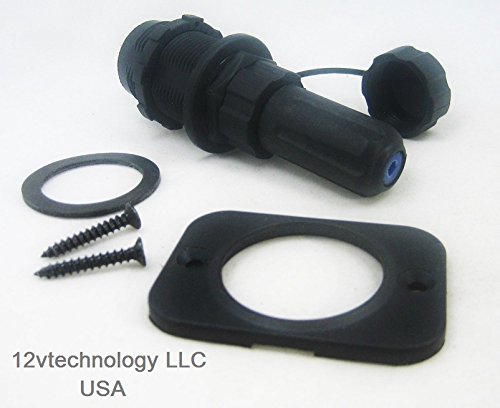

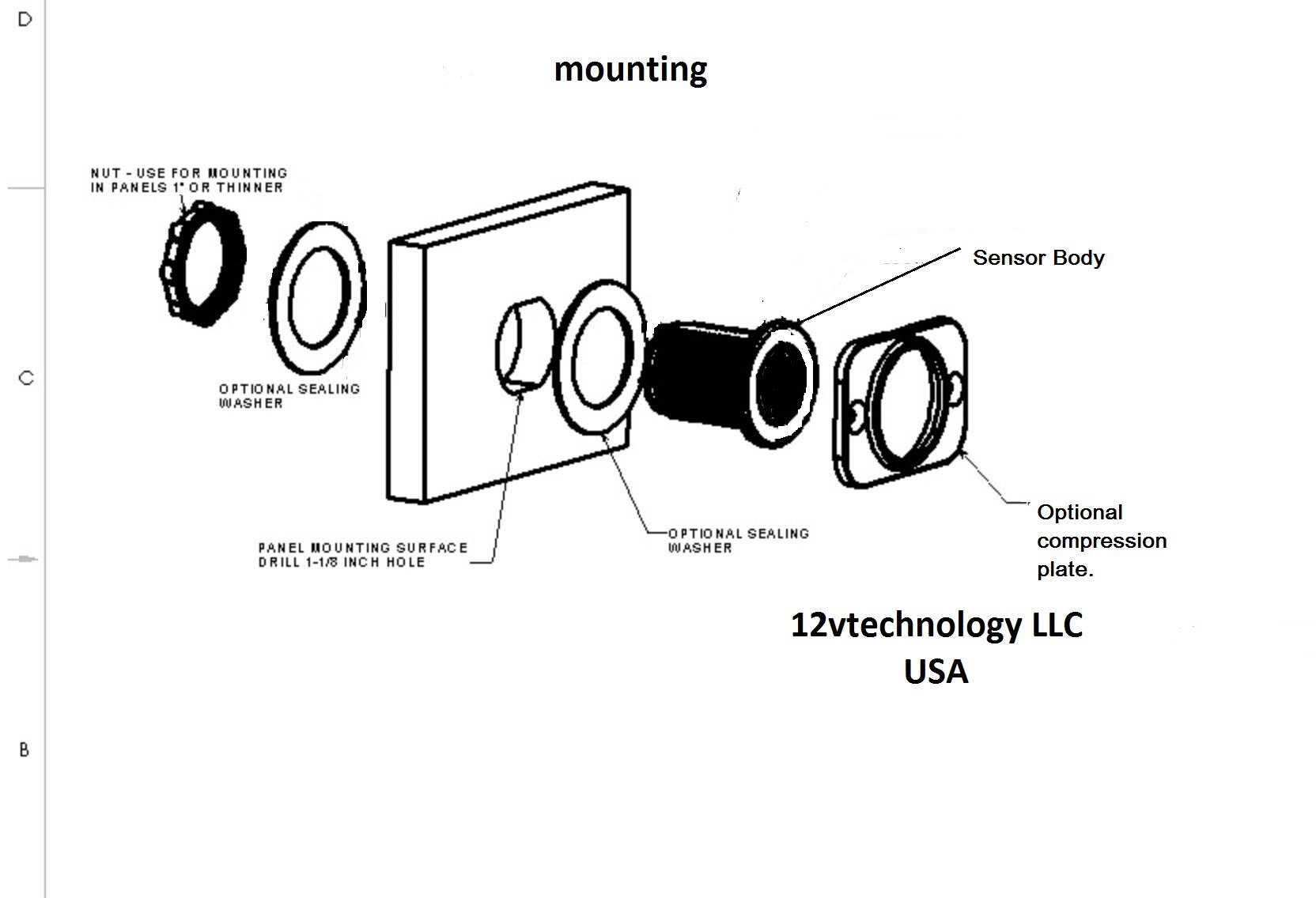

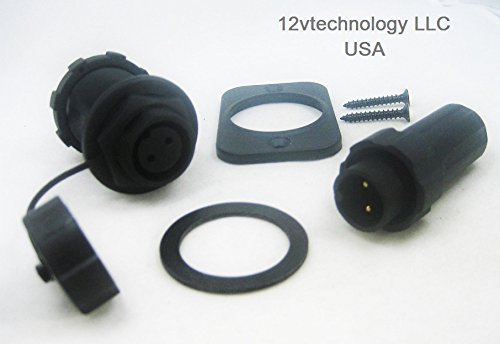

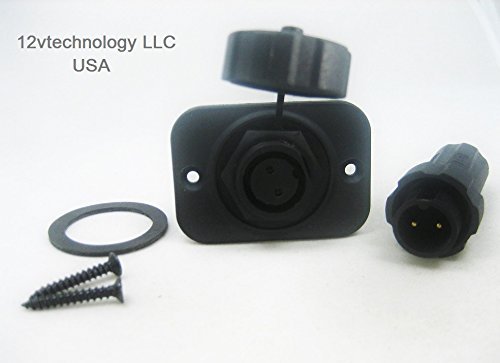

High quality waterproof two wire/pin polarized connector that can be mounted in a panel of any thickness. Rubber seals on all connection and mount. Used for marine applications, solar panel connections and weather exposed connections’ Polarization allows for a safe positive and negative connection that can’t be crossed. Pin are marked with a 1 and 2 and Plus (+) and Minus (-). Pin 1 equals +. Pin 2 equals -. This listing is for one two part waterproof panel connector for 12 volts. The female connector portion can be mounted in a panel of any thickness. A tethered cap encloses the connector when not in use. The male portion attaches to the application cable. A packing nut on the back of male portion seals off the wire cable. The two connector parts attach together with screw coupling with rubber seals. The female panel connector body when mounted in the panel is waterproof with the rubber sealing washer. Male 0.250 spade terminals allow you to make the connections to the panel connector. Solder connections on the male connector. Rated for 15 amps at 12 volts. Mounts in hole of 1-1/8″. Can mount in a panel 1-1/4″ thick with just the backing nut. The compression rectangular mounting plate allows the connector to be mounted in a panel or dashboard of any thickness.
Waterproof submersible connection.
Rated for 15 amps at 12 volts.
Mounts in a panel or dashboard of any thickness.
Boat or solar panel applications.
UV stabilized components.
