Description

Characteristics
1.Effectively reduce torque.
2.Carbon steel body, compact, safe.
3.Patented permanent magnet AC generator with special stator.
4.Epoxy zinc rich primer and polyurethane anti-corrosion treatment.
5.Intelligent automatic grease injection, which ensure flexible running and durable life
6.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure.
7.Turbines with low power can constantly charge. Electricity consumption is related to the capacity of the battery, and the output power is more dependent on the wind speed than the rated power of the turbine.
8.Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.

Features
1.Rated Power: 400W
2.Number of Blades: 3pcs
3.Wheel Diameter :1.2m(4′)
4.Tower Type: Guyed tower
5.Gross weight: 9.5kg(21lbs)
6.Blades Material: Nylon fiber
7.Tower Diameter >80 mm(3.2″)
8.Rated Battery Voltage: DC12V
9. Tower Height :4.5m-10m(15-33′)
10.Start-up Wind Speed : 2.0m/s(8’/s)
11.Brake Wind Speed: 20m/s(65.6’/s)
12.Survival Wind Speed: 45m/s(148’/s)
13. Working Temperature: -40℃-80℃
14. Rated Wind Speed :10.5m/S(35’/s)
15. Packing size: 68*28*21cm(26.8”*11”*8.3”)
16. Wind turbine generator extended wires: 250mm.
17. Generator: 3 phase AC permanent magnet synchronous
18. Control System: Electromagnetic/Wind wheel partial side
19. Direction Regulation Method: Automatically adjust windward direction

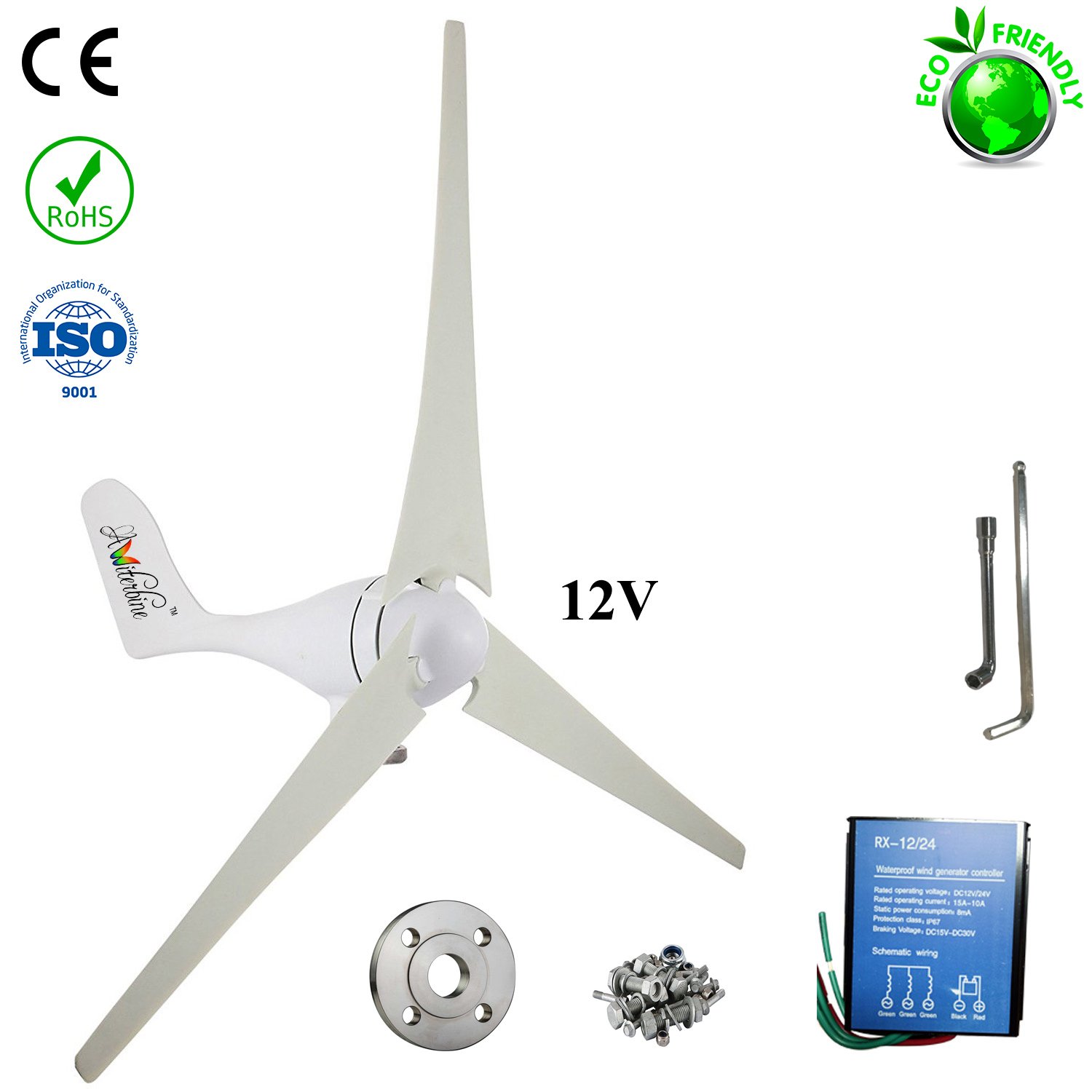

Package Includes:
2xTools
3 x Blades
2 x Flanges
1 x Nose Cone
1 x Wind Turbine
1 x Wind Controller
1 x Installation guide
1 set Screws and Nuts

HIGH POWER GENERATION RATE, rated electric energy production up to 1000KW·H each year. In effect, it is far more than this result about 3-5 times than it.
EASY INSTALLATION, human-friendly and delicately design, no maintaining.
EXTENSIVE APPLICATION SCENARIOS, popularly used for green windmill, RV, boat, homes, businesses, industrial energy supplementation, Island and emergency power supply.
LOW START-UP SPEED, 2.0m/s(8’/s), nylon-fiber blades, optimized structure and aerodynamic shape, high wind power utilization, light, cute, low vibration.
SAFE AND ECO-FRIENDLY, offering 2pcs flange installation promise it firm. Matching professional PWM controller can protect wind turbine and electric circuit. Renewable wind power, no pollution, no noise.
