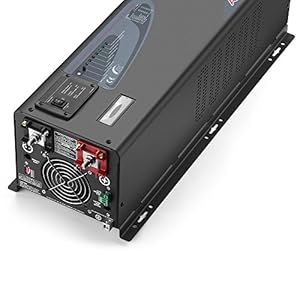

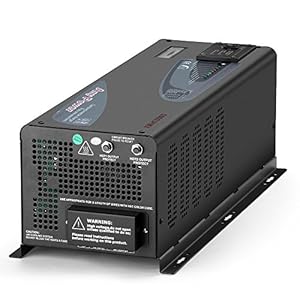

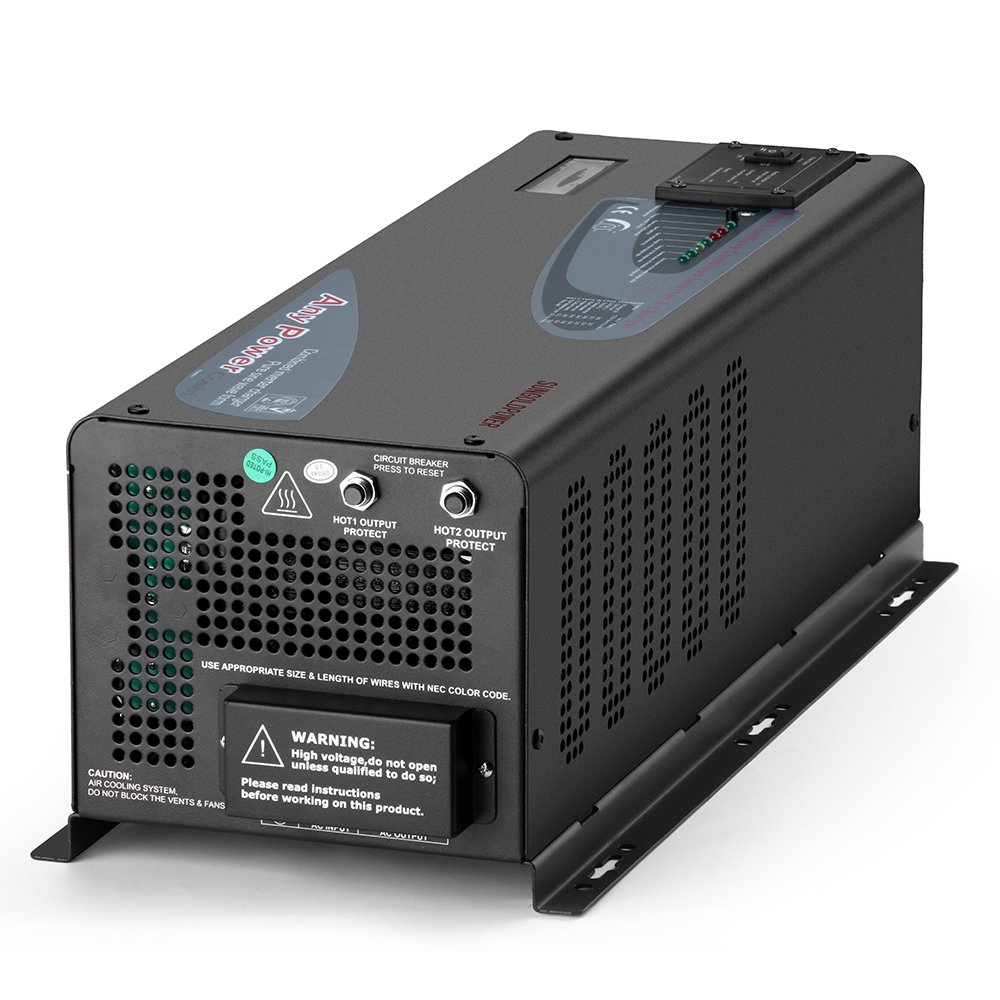

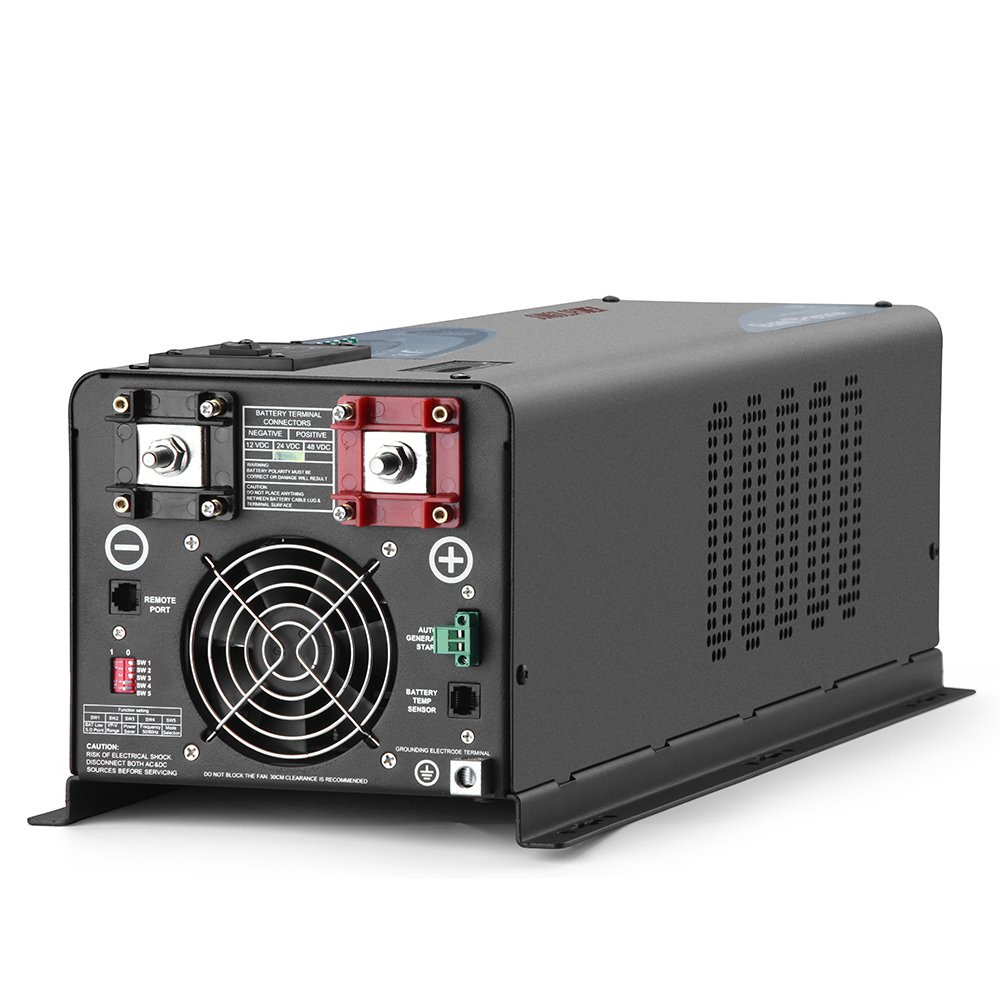

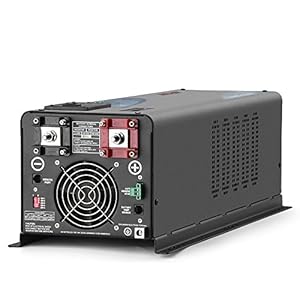

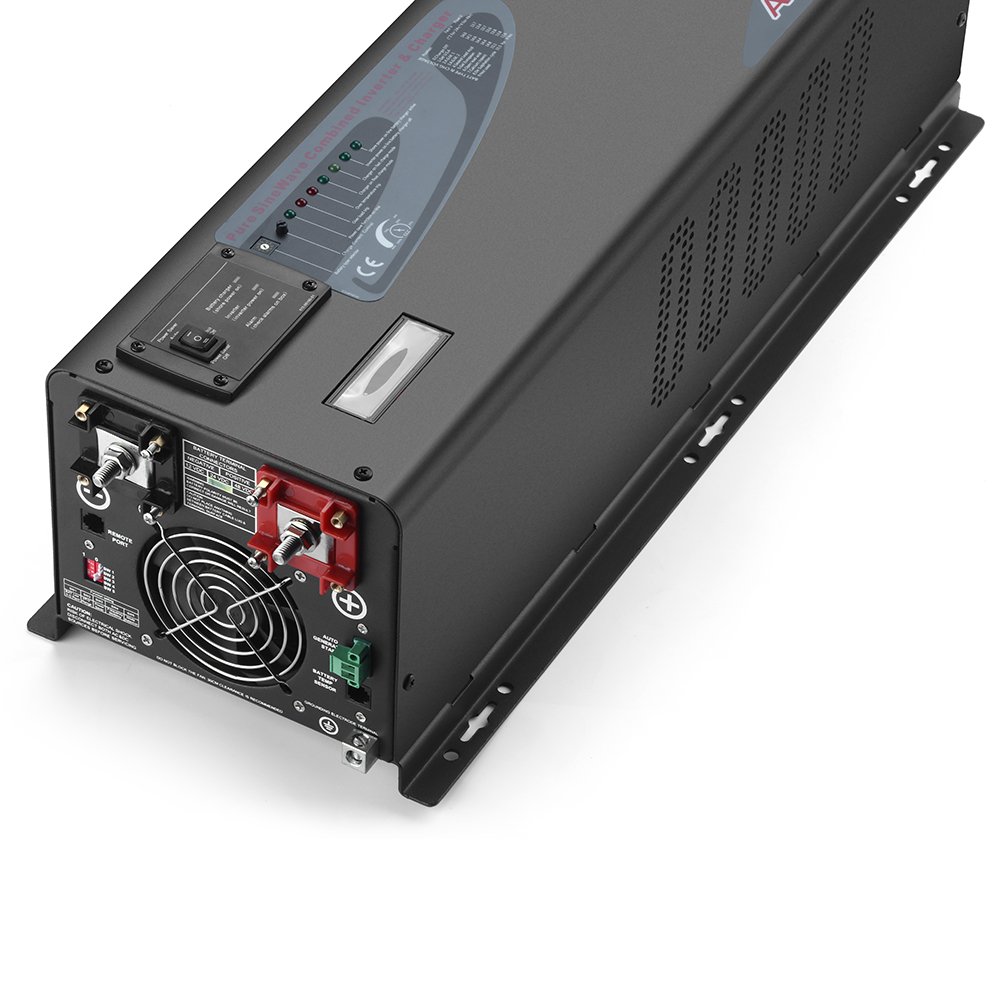

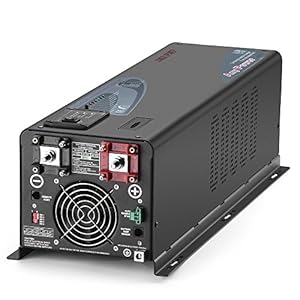

SUNGOLDPOWER 4000W 24Vdc Pure Sine Wave Inverter Low Frequency 240Vac Input 120Vac/240Vac Output Split Phase with…

SUNGOLDPOWER 4000W 24Vdc Pure Sine Wave Inverter Low Frequency 240Vac Input 120Vac/240Vac Output Split Phase with…

Amazon.com Price: $995.00 (as of 10/04/2023 08:25 PST- Details)

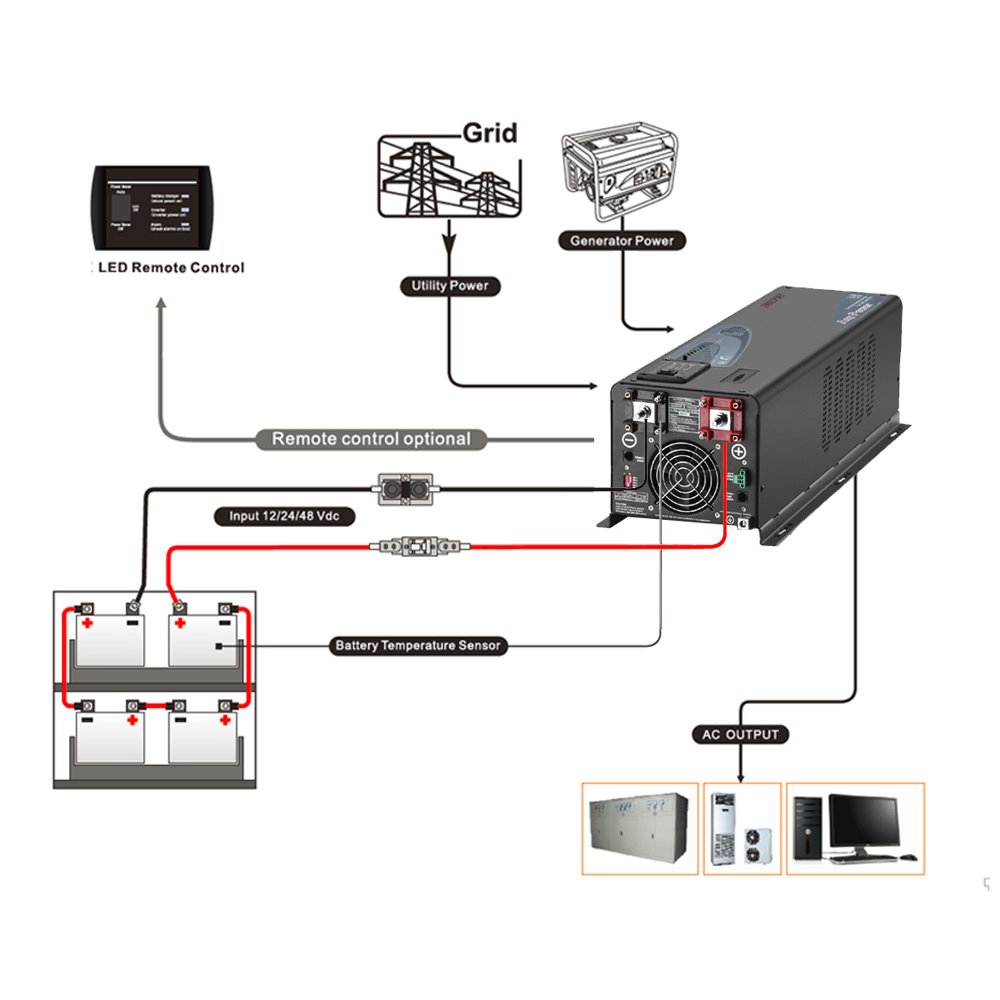

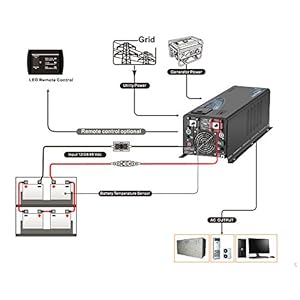

1. This APC Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch.Low frequency,low Idle Current,remote control
2. Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch at the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.the liner switch can effectively reduce the max charging current to 20% of its peak.Choosing “0” in the battery type selector will disable charging function
3. AC/Battery Priority: Our inverter is designed with AC priority by default, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. the inverter can be easily customized to Battery priority via a DIP switch, When you choose battery priority, the inverter will invert from battery despite the AC input.

Usually ships in 6-10 business days

Categories: ,

Description

Features:

1.Low Frequency Pure Sine Inverter With Charger
2.AC/Battery Priority Selector
3.Automatically Generator Start
4.Safety and Convenient
5.Marine Coated and Protected

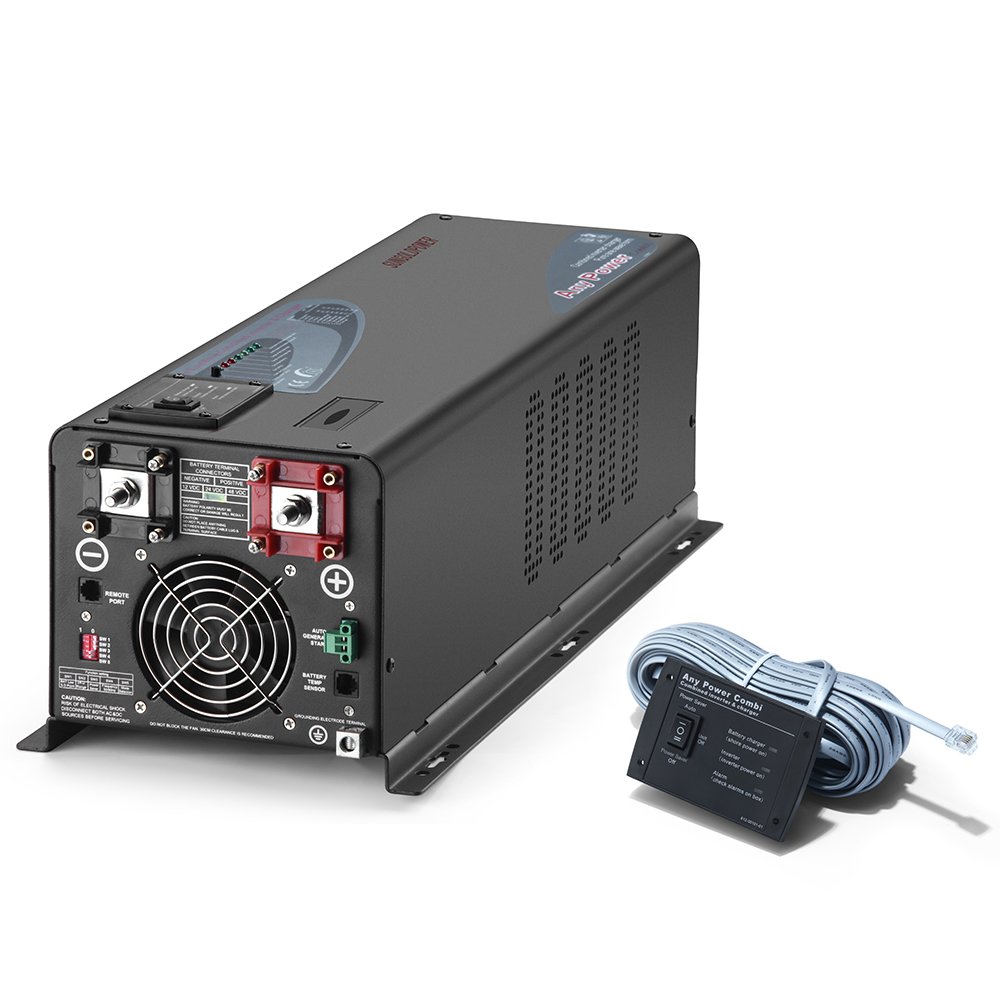

6.LCD Display, Remote Control
7.Low Idle Consumption
8.battery type settings for charger
9.Multi Stage Smart charger 65+/-5A, charger can be disable
10.10msec typical transfer time

Inverter Output:

Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts (20 Seconds)
Output: AC120V and AC 240V ,60HZ
AC Input:240V
Output Wave: Pure Sine Wave (bypass mode)
Typical Transfer Time: 10ms(MAX)
Nominal Efficiency: >88%

DC Input:

Nominal Input Voltage: 24.0Vdc
Minimum Start Voltage: 20.0Vdc
Low Battery Alarm: 21.0Vdc-22.0Vdc
Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
High Voltage Alarm: 32.0Vdc
Low battery Voltage Restart: 26Vdc
Idle Consumption: 48 Watts
Power Saver Mode Idle Consumption: 19.3 Watts

AC Charger Specifications:

Charger Rate: 65+/-5A
AC input Range(Grid or Generator): 140V-270VAC/184V-253VAC(select by SW2)
Over Charge Protection Shutdown:31.4V
Selectable Charge Setting based on battery type
Adjustable charge current: off-20%-100%
4-step intelligent battery charger

Package:

APC Low Frequency Pure Sine Inverter Charger
English Manual
Remote Control

Dimensions:

Unit Weight: 53lbs.
Unit Size L x W x H: 17.4×9.5×7.8inch
Shipping Weight: 57lbs
Shipping Size L x W x H : 23×12.6×12.0inch

1. This APC Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch.Low frequency,low Idle Current,remote control
2. Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch at the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.the liner switch can effectively reduce the max charging current to 20% of its peak.Choosing “0” in the battery type selector will disable charging function
3. AC/Battery Priority: Our inverter is designed with AC priority by default, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. the inverter can be easily customized to Battery priority via a DIP switch, When you choose battery priority, the inverter will invert from battery despite the AC input.
4. Auto Gen Start:the inverter can be customized to start up a generator when the battery voltage goes low.When the inverter goes to low battery alarm, it can send a signal to start a generator, and turn the generator off after battery charging is finished. The auto gen start feature will only work with generators designed to work with this feature.
5. Protections: AC input over voltage protection/AC Input low voltage protection/Low battery alarm/High battery alarm /Over temperature protection/Over load protection Short Circuit protection (1s after fault)
/Back feeding protection
